量化推理是如何把scale转换为定点运算的

void QuantizeMultiplier(double double_multiplier, int32_t* quantized_multiplier,
                        int* shift) {
  if (double_multiplier == 0.) {
    *quantized_multiplier = 0;
    *shift = 0;
    return;
  }
#ifdef TFLITE_EMULATE_FLOAT
  // If we're trying to avoid the use of floating-point instructions (for
  // example on microcontrollers) then use an alternative implementation
  // that only requires integer and bitwise operations. To enable this, you
  // need to set the define during the build process for your platform.
  int64_t q_fixed = IntegerFrExp(double_multiplier, shift);
#else   // TFLITE_EMULATE_FLOAT

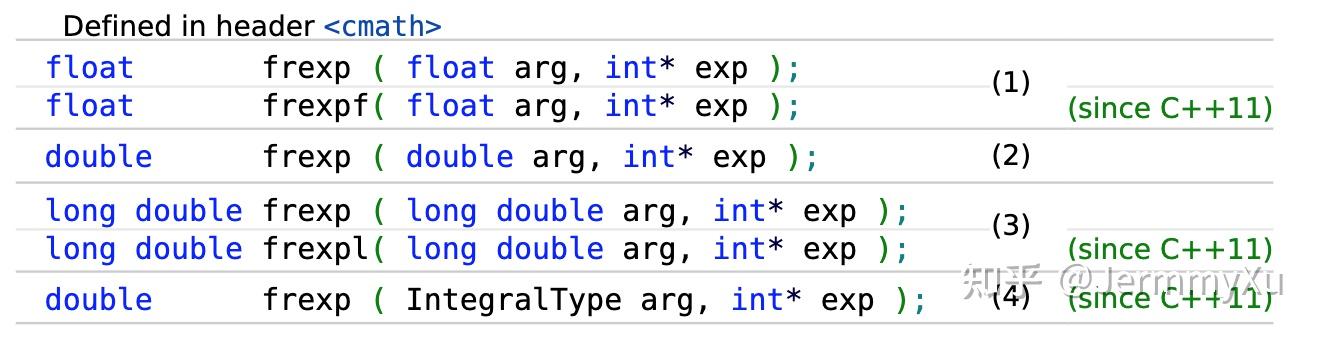

  const double q = std::frexp(double_multiplier, shift);
  auto q_fixed = static_cast<int64_t>(TfLiteRound(q * (1ll << 31)));
#endif  // TFLITE_EMULATE_FLOAT
  TFLITE_CHECK(q_fixed <= (1ll << 31));
  if (q_fixed == (1ll << 31)) {
    q_fixed /= 2;
    ++*shift;
  }
  TFLITE_CHECK_LE(q_fixed, std::numeric_limits<int32_t>::max());
  // A shift amount smaller than -31 would cause all bits to be shifted out
  // and thus all results would be zero. We implement that instead with
  // q_fixed==0, so as to avoid hitting issues with right-shift
  // operations with shift amounts greater than 31. Note that this happens
  // roughly when abs(double_multiplier) < 2^-31 and the present handling means
  // that we're effectively flushing tiny double_multiplier's to zero.
  // We could conceivably handle values in the range (roughly) [32, 63]
  // as 'denormals' i.e. (shift==0, q_fixed < 2^30). In that point of view
  // the present handling is just doing 'flush denormals to zero'. We could
  // reconsider and actually generate nonzero denormals if a need arises.
  if (*shift < -31) {
    *shift = 0;
    q_fixed = 0;
  }
  *quantized_multiplier = static_cast<int32_t>(q_fixed);
}

#ifdef TFLITE_EMULATE_FLOAT
  // If we're trying to avoid the use of floating-point instructions (for
  // example on microcontrollers) then use an alternative implementation
  // that only requires integer and bitwise operations. To enable this, you
  // need to set the define during the build process for your platform.
  int64_t q_fixed = IntegerFrExp(double_multiplier, shift);
#else   // TFLITE_EMULATE_FLOAT
  const double q = std::frexp(double_multiplier, shift);
  auto q_fixed = static_cast<int64_t>(TfLiteRound(q * (1ll << 31)));
#endif  // TFLITE_EMULATE_FLOAT

#include <iostream>
#include <cmath>

using namespace std;

int main(int argc, char const *argv[]) {
   float f = 123.45;
   float f1;
   int i;

   f1 = frexp(f, &i);
   cout << f1 << " * " << "2^" << i << " = " << f1 * pow(2, i) << endl;

    f = 0.000123;
    f1 = frexp(f, &i);
    cout << f1 << " * " << "2^" << i << " = " << f1 * pow(2, i) << endl;
   return 0;
}

0.964453 * 2^7 = 123.45
0.503808 * 2^-12 = 0.000123
